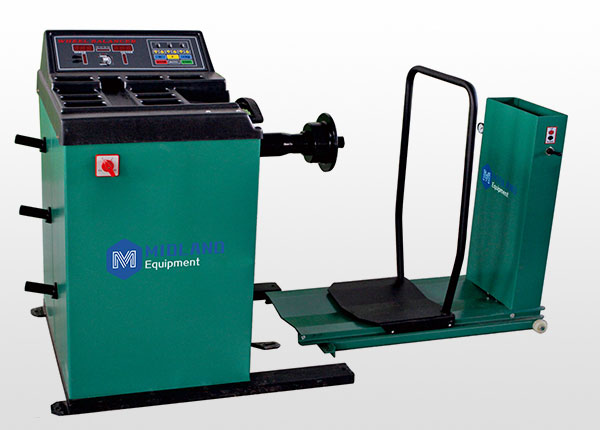

This Machine has high intelligence,high stability can achieve the size of car conversion and do trucks(passenger)cars and motorcycle tires balance by the integrated circuit composed of microprocessors
The precision of the balance of the spindle is a fundamental guarantee for high-density balance for the
wheel balance machine,and is specially designed for your balance of large hub hole tires.
Pneumatic lift will makethebigtire rise and fall freely
Pneumaticlift hasabumperwhichincrease theoperationalsafety
TECHNICAL PARAMETERS
| Voltage | 220V/380V | Motor Power | 0.55/0.75kw |
| Rim Clamping from outside | 10-20" | Working Rotation Speed | 6.8rpm |
| Rim Clamping from inside | 1200mm | Working air pressure | 0.7-0.8MPa |
| Rim Diameter | 4-13" | Gross/Net weight | 300kg/280kg |
| Wheel width | 12-26" | Packing Size | 1250*1000*1200mm |
